Faulhaber / MicroMo 3557K 024C DC Micromotor with 12:1 Gearhead

Faulhaber / MicroMo 3557K 024C DC Micromotor with 12:1 Gearhead

SKU:0721-01

Regular price $665.00 USD
Regular price Sale price $665.00 USD
Sale Sold out

Low stock: 2 left

Faulhaber part number 3557K 024C
This precision graphite commutated, 4800 RPM, 24 VDC motor has a 34/1 Faulhaber
 gear reducer with a 12:1 reduction ratio. No load reduction speed is 400 RPM max.,
continuous stall torque is 2.25 Nm (20 lb-in) with a maximum stall torque of 3.0 Nm (26 lb-in).

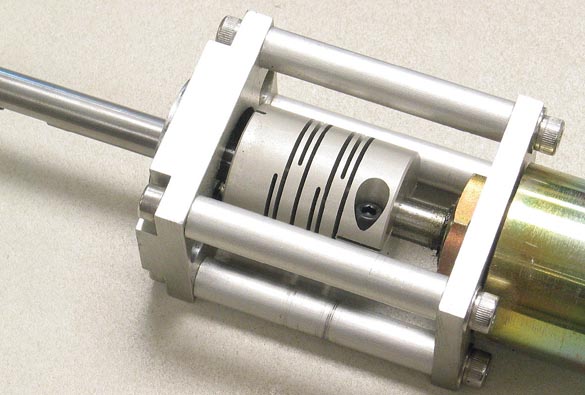

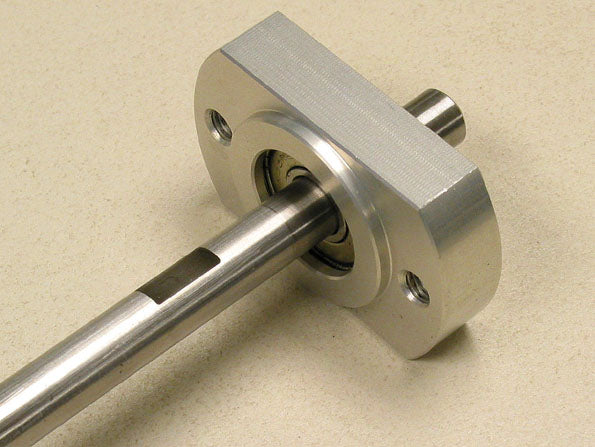

The motor comes with a precision flex coupling, mounting frame, bearing blocks,
8mm diameter shaft extension 170mm long and a custom machined plastic cover
to protect the motors terminal leads.

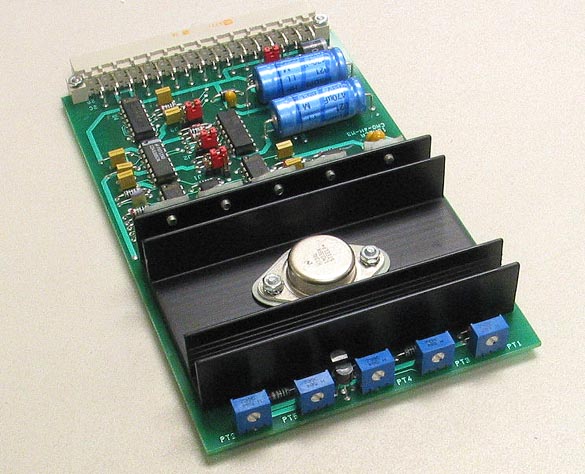

Also included is a digital NPN input controller.
Controller allows control of:
-Forward and reverse direction control
-Independent forward and reverse speed control (0 to 400 RPM)
-Torque adjustment
-High and low rpm speed range control

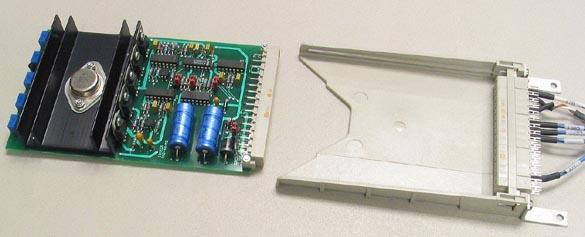

Also included is a slide in card holder for the controller.
This system is used - fully tested - with 90 day Warranty

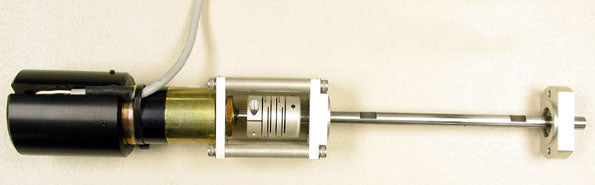

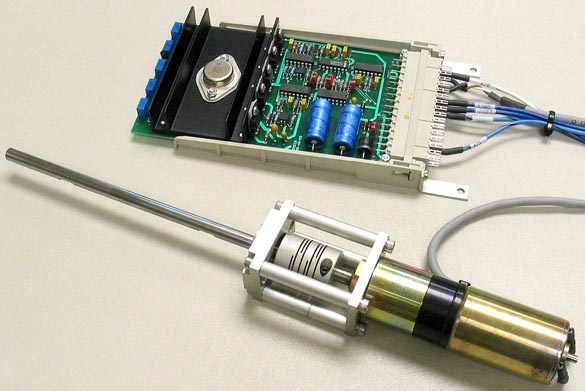

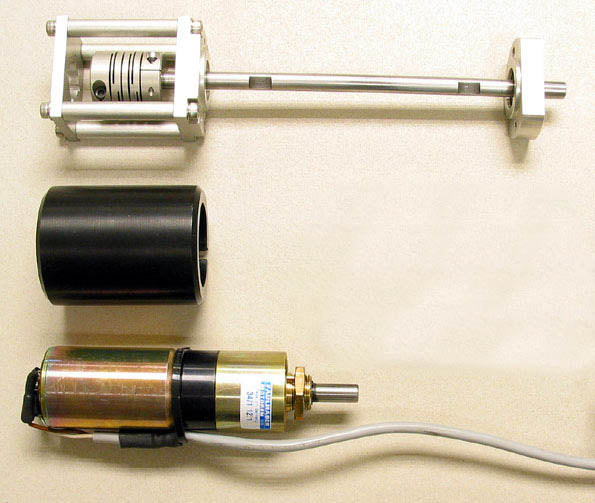

Actual pictures of motor and controller.

Price $665.00 each (2 available - complete)

Price $225.00 each (motor only)

Price $240.00 each (gear reducer only)

Price $240.00 each (motor controller only)


Payment Options:

Money Order / Cashiers Check.

PayPal - any Pay Pal transactions will incur an additional 4% of total cost.

Personal or company check (please allow 3 days for check to clear.)

No credit card payments accepted.

For any questions, please call 585-494-6165.
