Faulhaber / MicroMo 3557K 024C DC Micromotor with 12:1 Gearhead

Faulhaber part number 3557K 024C
This precision graphite commutated, 4800 RPM, 24 VDC motor has a 34/1 Faulhaber
 gear reducer with a 12:1 reduction ratio. No load reduction speed is 400 RPM max.,
continuous stall torque is 2.25 Nm (20 lb-in) with a maximum stall torque of 3.0 Nm (26 lb-in).
The motor comes with a precision flex coupling, mounting frame, bearing blocks,
8mm diameter shaft extension 170mm long and a custom machined plastic cover
to protect the motors terminal leads.
Also included is a DIN rail mountable digital NPN input controller.
Controller allows PLC control of:
-ON-OFF control
Torque adjustment is manual
RPM speed control is manual
This system is used - fully tested - with 90 day Warranty

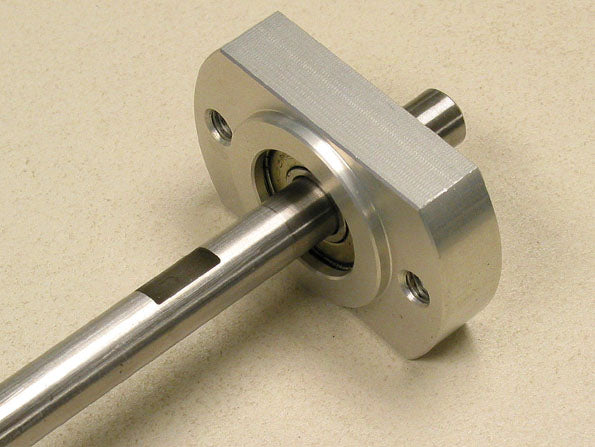

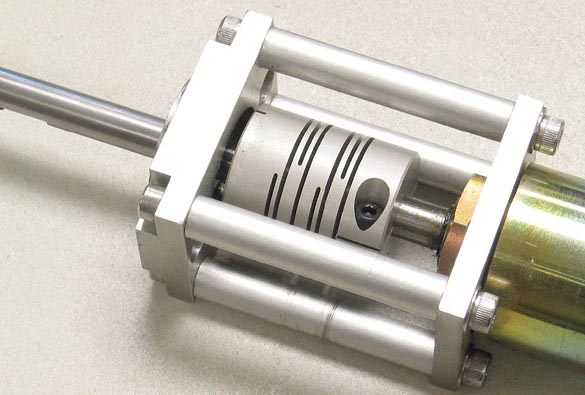

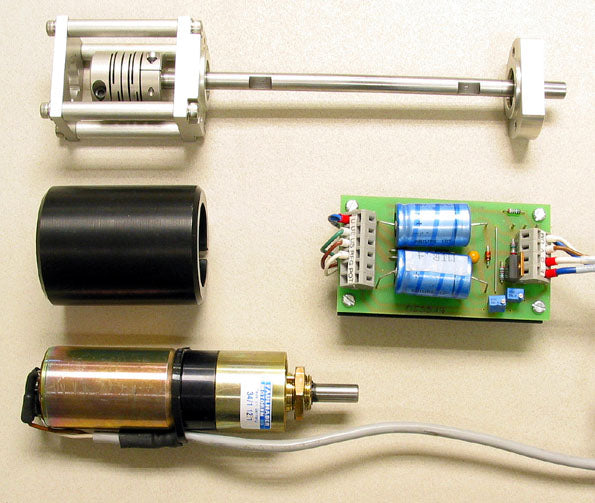

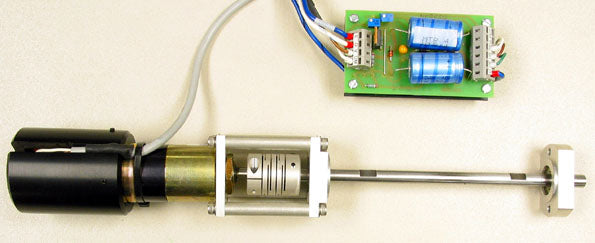

Actual pictures of motor and controller

Price $505.00 each (5 available - complete)

Price $225.00 each (motor only)

Price $240.00 each (gear reducer only)

Price $65.00 each (controller only)
