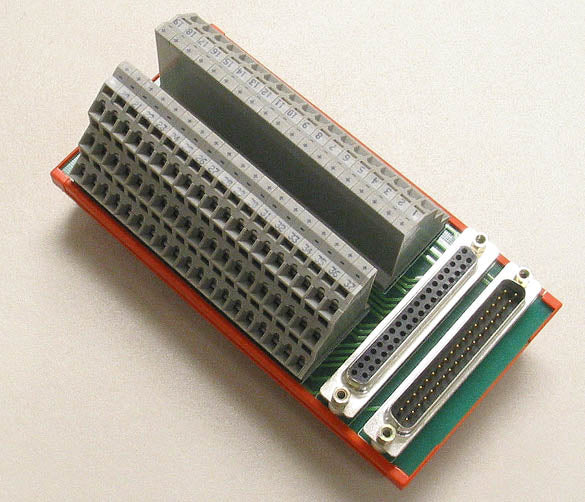

WAGO 737 Series Dual DB37 I/O Interface Terminal Block Module

 This is a WAGO 737 Series dual triple deck I/O
terminal block with front entry push-wire spring clamping.
The module has one 37 pin D-Sub male and one 37 pin female connector.
Both terminal blocks have a (+) and (-) buss for input or output devices.
The module will handle a total of 37 inputs or outputs using both D-Sub connectors
or 19 inputs on one connector with 18 outputs on the other connector.

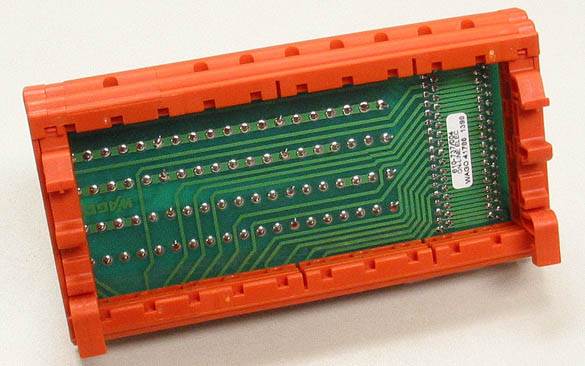

Module has DIN rail snap mounting carrier and includes complete pin-out diagram.
The connector shell is independently grounded to the input connector.
The D-Sub connectors are equipped with conventional threaded
studs and are compatible with all standard industrial hardware.
This terminal block is used - like NEW - with 90 day Warranty.
Price $40.00 each (20 available)

DB37 Cables for this module (please specify male or female and length)
Includes cable pin-out diagram

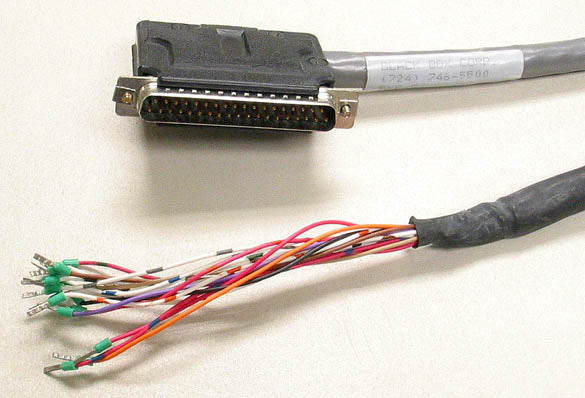

Shielded Length with Male Connector - Input
4 foot $18.00 each (3 available)
7 foot $20.00 each (3 available)
8 foot $20.00 each (3 available)
9 foot $25.00 each (9 available)

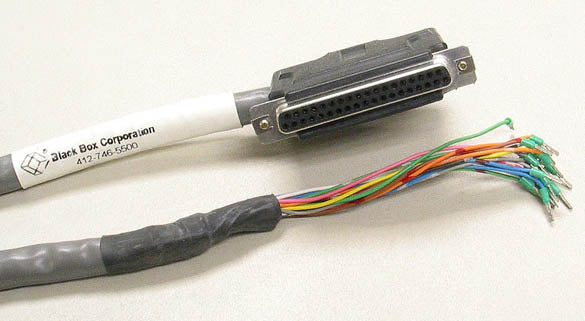

Shielded Length with Female Connector - Output
3 foot $18.00 each (1 available)
4 foot $18.00 each (1 available)
5 foot $18.00 each (1 available)
6 foot $18.00 each (1 available)
8 foot $20.00 each (2 available)
9 foot $25.00 each (12 available)

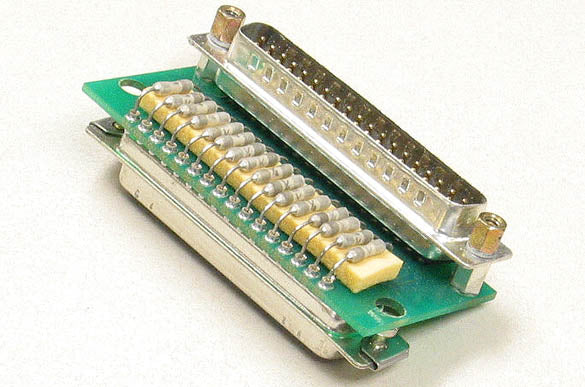

DB37 Fused Output Adapter with 16 replaceable fuses 250mA.
Includes cable pin-out diagram
Price $15.00 each (12 available)
