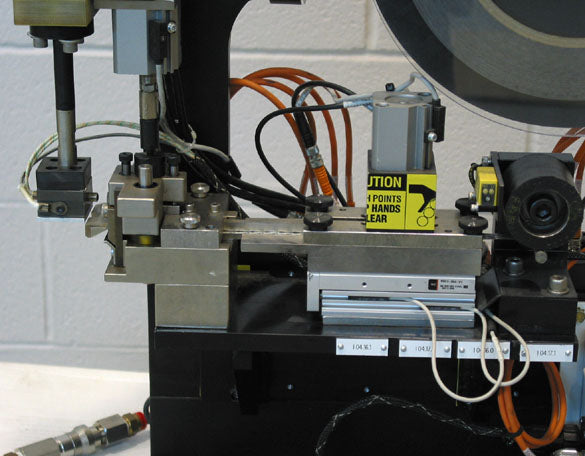

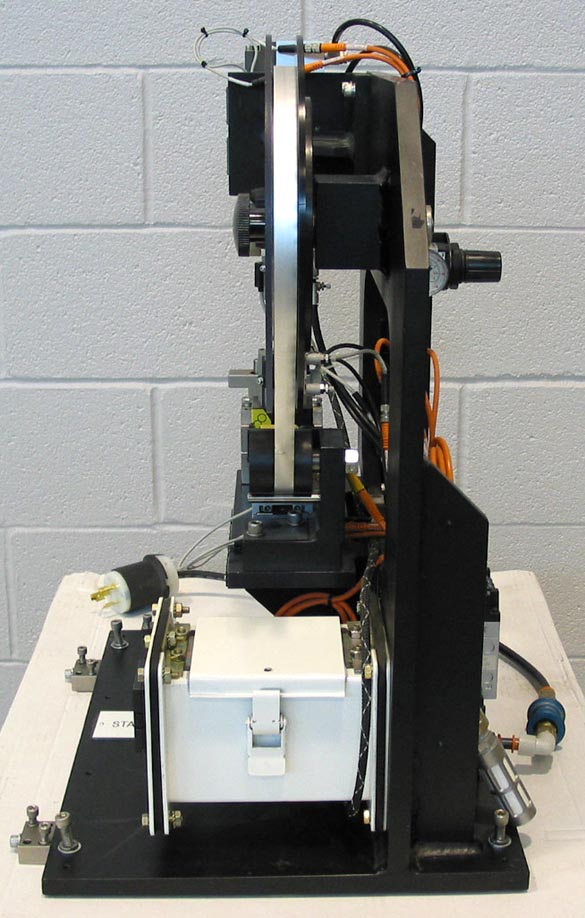

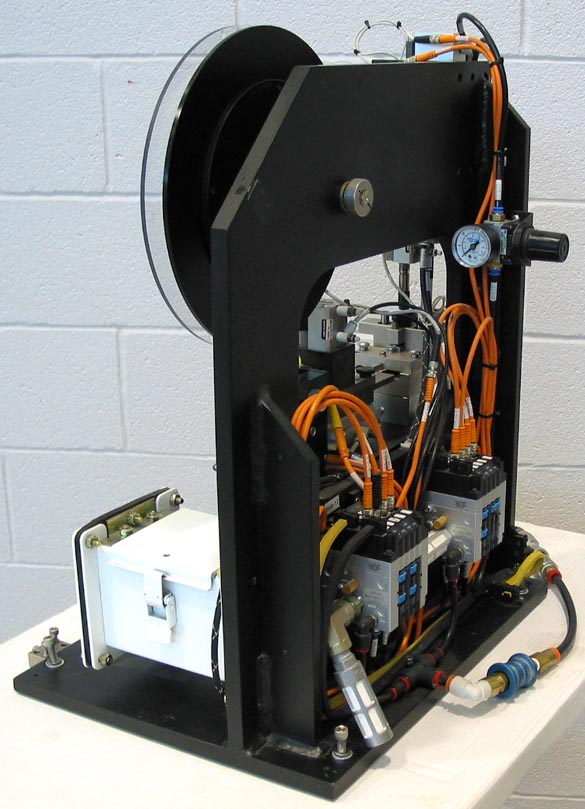

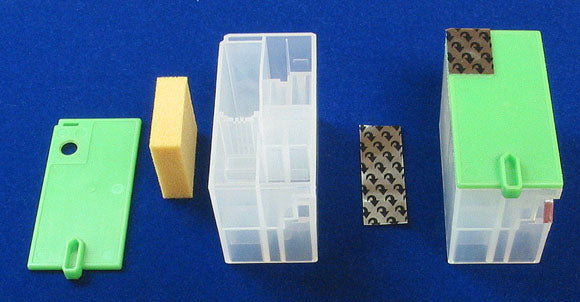

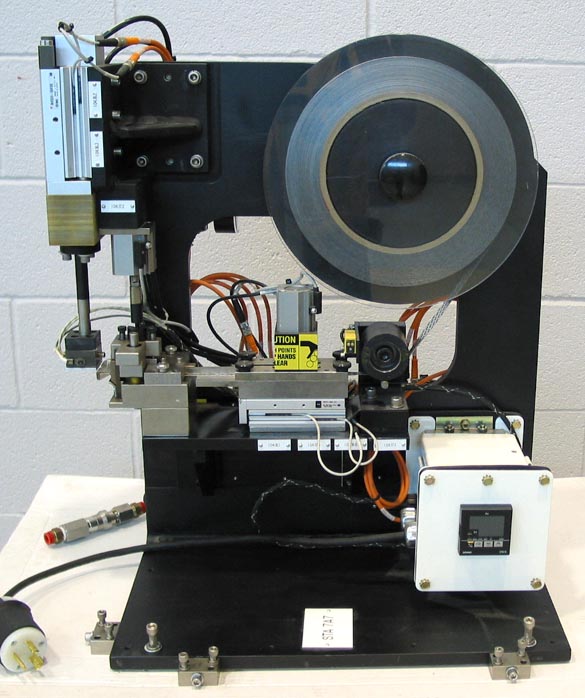

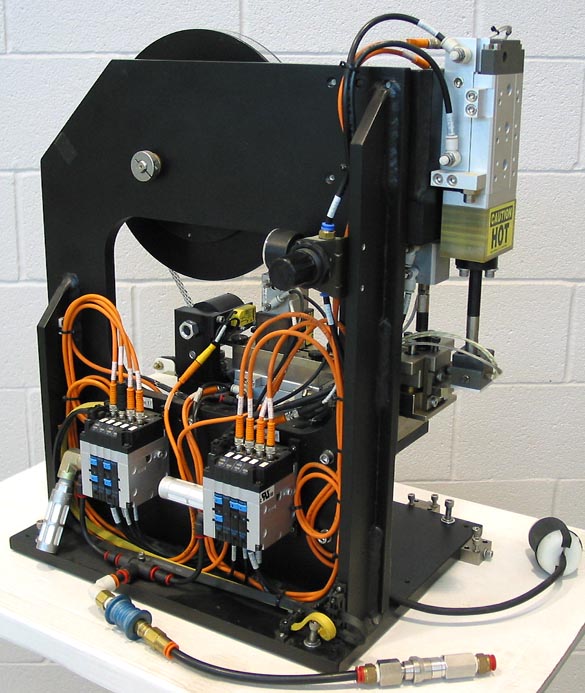

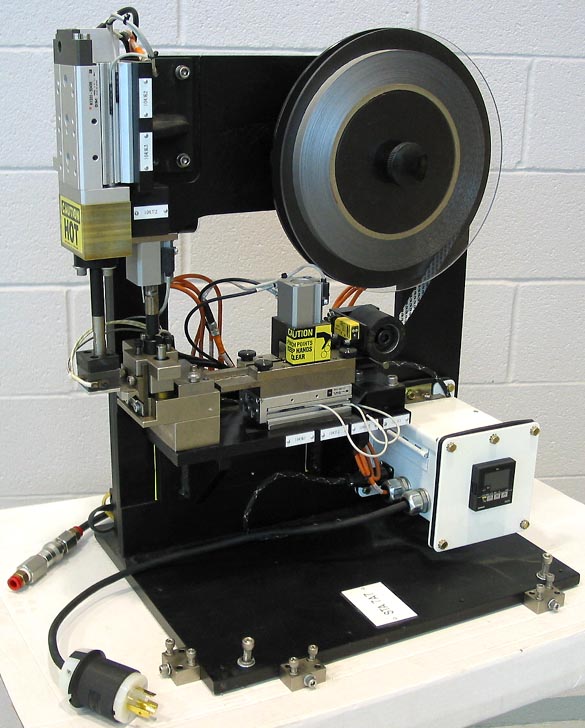

This hot stamper was qualified for payment, but has seen no production. This module was used to supply, feed, apply and cut a 15mm wide by 50mm long heat sensitive foil seal onto a polypropylene printer ink cartridges. As pictured. A 25mm long section was heat sealed with a 25mm long section left as a pull-off tab. All motions are via SMC slide tables on linear bearings for long life and are controlled by Festo air valves CPV-10-GE-ASI (PLC) with AS-Interfaces. Control could easily be changed to any other PLC controller. Supply reel has a tension adjustment and out of tape sensor. Hot stamper operates on 230 / 240 VAC single phase. The unit sits on a 14" x 18" x 1/2" anodized aluminum base plate Includes locators and tie down features for easy and quick replacement or change. Temperature is controlled by an OMRON E5CK Advanced Digital Controller. Unit is used - Like NEW - Actual pictures of item - with 60 Warranty. Complete hot stamping / sealer module $2,150.00 ea. (2 available)
