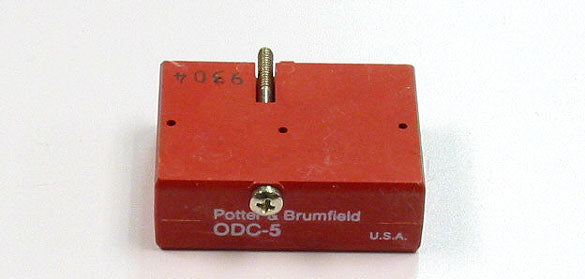

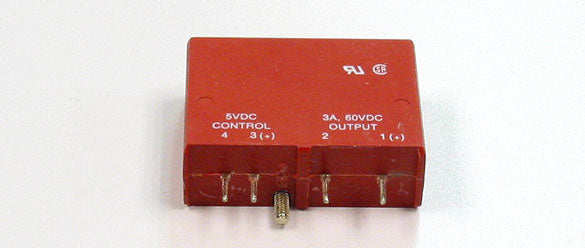

Potter & Brumfield / TYCO ODC-5 Optically Isolated DC Solid State Digital Relay Output Module

This solid state relay has the following specifications:
One-second Surge                       5 Amps
Operating Ambient Temperature          - 30 deg. C to 70 deg. C
Isolation, Input-to-Output (Transient) 4000 volts
Turn-on Time                           50 us
Turn-off Time                          50 us
Output Voltage Drop Maximum Peak       1.6 volts
Line voltage - max.                    60 VDC
Operating voltage range                5 to 60 VDC
Current rating @ 45 deg. C ambient     3.2 Amps
UL Motor Load rating                   1.5 Amps
Off-state leakage @ max. voltage       1 ma
Logic voltage - nominal                5 VDC
Logic voltage range (Vcc)              2.5 to 8 VDC
Logic pickup voltage                   2.5 VDC
Logic dropout voltage                  1 VDC
Logic input current                    12 ma
Control resistance                     220 Ohms

These modules are NEW - with 90 day Warranty
Price $18.00 each (5 available)
