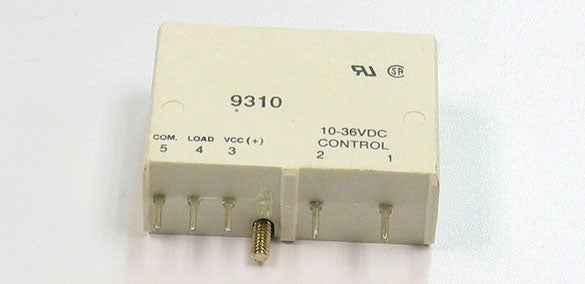

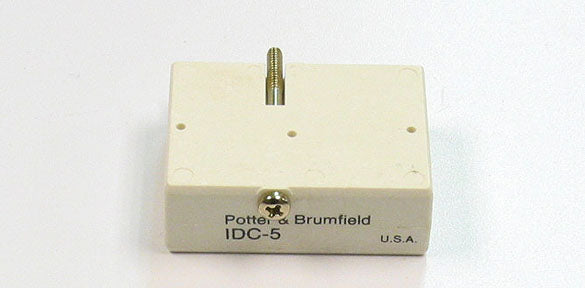

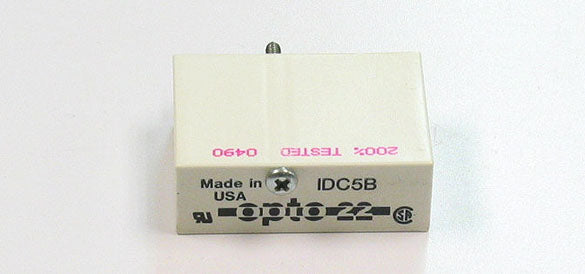

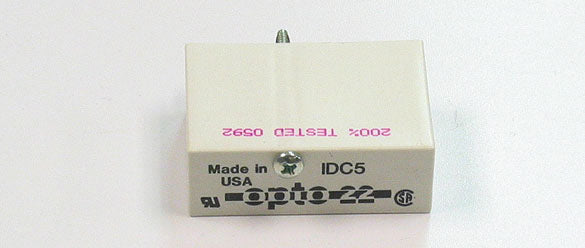

OPTO 22 IDC5 / IDC5B Optically Isolated Solid State Digital Input Module

The IDC5 can act as either a DC or AC input, accepting 10-32 VDC or 12-32 VAC.
All AC and DC input modules have a bridge-rectifier input.
Each module provides up to 4000 volts (transient) of optical isolation
between the field inputs and the output side of the circuit.
Input modules are used for sensing ON/OFF voltage levels.
Typical uses and applications include sensing the presence or
absence of voltage or sensing contact closures from sources such as:
Proximity, limit, selector, photoelectric, toggle, and float switches,
push buttons, thermostats, or TTL-compatible devices.

 Standard DC Inputs
Operating Ambient Temperature            - 30 to 70 deg. C
Isolation, Input-to-Output (Transient)   4000 V
Output Voltage Drop: logic side          0.4 volts @ 50 mA
Output Current                           50 mA
Output Leakage With No Input             0.1 mA @ 30 VDC
Transistor                               30 volts breakdown

DC Input Specifications                        IDC5          IDC5B      Units
Input Voltage Range              10 to 32   4 to 16    VDC
                                 12 to 32   4 to 16    VAC
Input Current @ Max Line         25         45         mA
Turn-on Time                     5          0.05       msec
Turn-off Time                    5          0.1        msec
Input Allowed for No Output      1          0.7        mA
                                 3          1          Volts
Output Supply                    5          5          VDC
Voltage-Nominal
Output Supply                    4.5 to 6   4.5 to 6   VDC
Voltage-Range
Output Supply Current            12         12         mA
@ Nominal Logic Voltage
Input Resistance                 1.5k       300        Ohms
Control Resistance               220        220        Ohms
(Rc in schematic diagram)

For additional information see:
http://www.opto22.com/site/pr_details.aspx?item=IDC5&qs=100310071001,,,17,32&
http://relays.tycoelectronics.com/datasheets/IAC_DS.pdf
These modules are NEW - with 90 day Warranty
Price $8.00 each (4 available) OPTO 22 IDC5
Price $9.00 each (1 available) OPTO 22 IDC5B
Price $7.00 each (3 available) Potter & Brumfield IDC-5
