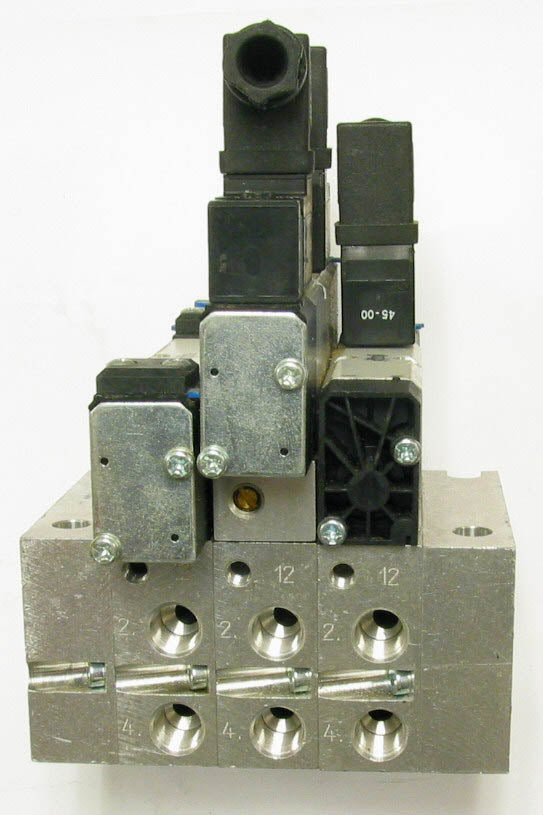

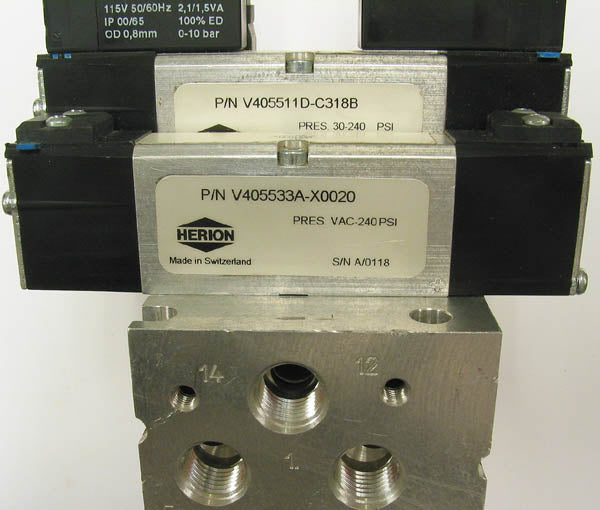

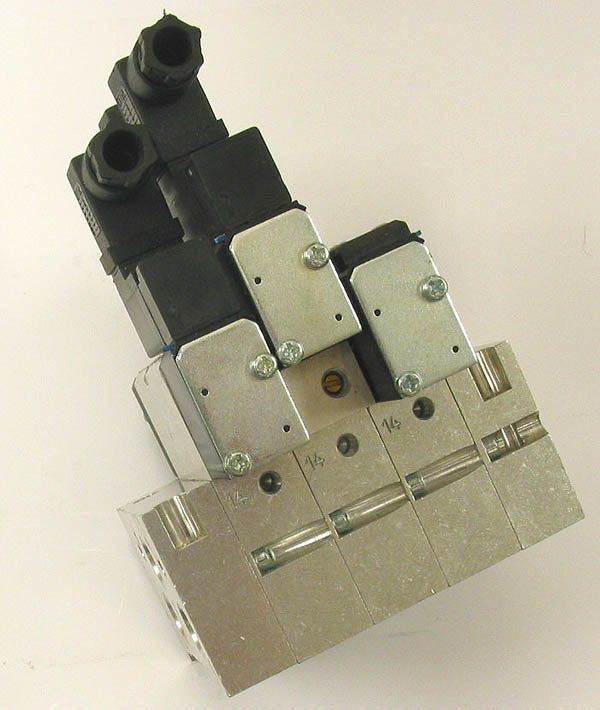

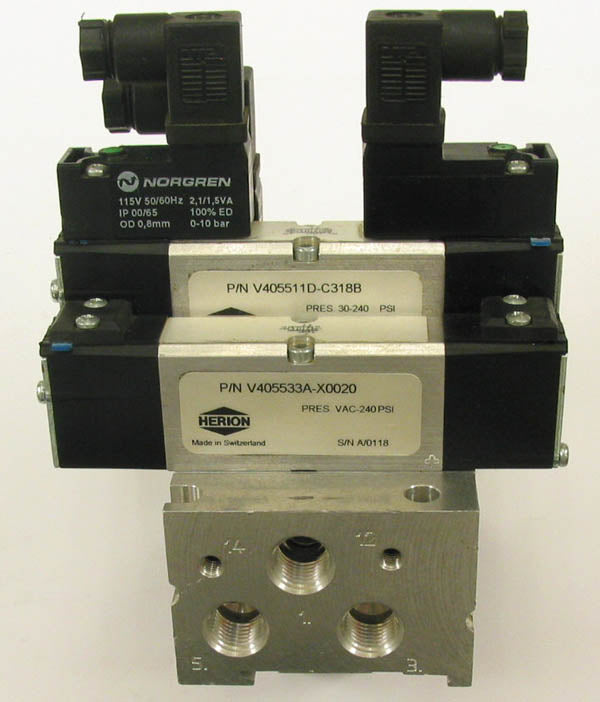

Norgren / Herion V405533A-X0020 / V405511D-C318B / V405516D-C318B Pneumatic Valve Assembly
Norgren / Herion V405533A-X0020 / V405511D-C318B / V405516D-C318B Pneumatic Valve Assembly
SKU:0445-05
Low stock: 1 left
The non-corrosive, Nituff coated, precision matched aluminum spool
and sleeve have a minimum 100 million cycle life.
Coil operating voltage is 115 VAC, 50/60 Hz, 1.5 VA
Ports 1, 3, 5 are1/4" NPT
Ports 2, 4 are 1/8" NPT
Ports 12, 14 are 10-32 (M5)
V405533A-X0020 5/2 Air Actuated Valve:
Spool Techn. - Metal
Valve Function - APB
Operator 14 - Air
Return 12 - Air
Flow - Cv - 0.62
Operating Pressure - 26" Hg to 232 psi (-0.9 to 16 bar)
Pilot Pressure - 29 to 232 psi (2 to 16 bar)
Weight - 0.24 lbs (0.11 kg)
V405511D-C318B 5/2 Solenoid Actuated Valve:
Spool Techn. - Metal
Pilot Supply - Internal
Pilot Ehaust - Collected
Operator 14 - Solenoid
Return 12 - Solenoid
Flow Cv - 0.58
Operating Pressure - 29 to 145 psi (2 to 10 bar)
Pilot Pressure - NA
Weight - 0.4 lbs (0.18 kg)
V405516D-C316B 5/2 Solenoid Actuated Valve:
Spool Techn. - Metal
Pilot Supply - Internal
Pilot Exhaust - Collected
Operator 14 - Solenoid
Return 12 - Spring & Air
Flow Cv - 0.58
Operating Pressure - 23.2 to 145 psi (6 to 10 bar)
Pilot Pressure - NA
Weight - 0.29 lbs (0.13 kg)
This valve assembly is New - Actual pictures of unit - With 30 day Warranty
Price $560.00 each (1 available)
