Camozzi 6520 / 6510 Series Quick Disconnect One Touch Plastic Tube Fittings

Camozzi 6520 / 6510 Series Quick Disconnect One Touch Plastic Tube Fittings

SKU:0735-01

Regular price $4.00 USD
Regular price Sale price $4.00 USD
Sale Sold out

100 in stock

These are all brass nickel plated "one touch" air fittings.
Operating pressure 0-250 psi - vacuum rating 29" of mercury Hg.
Operating temperature 0 F - 160 F
All fittings are used - in New condition - with 90 day Warranty.

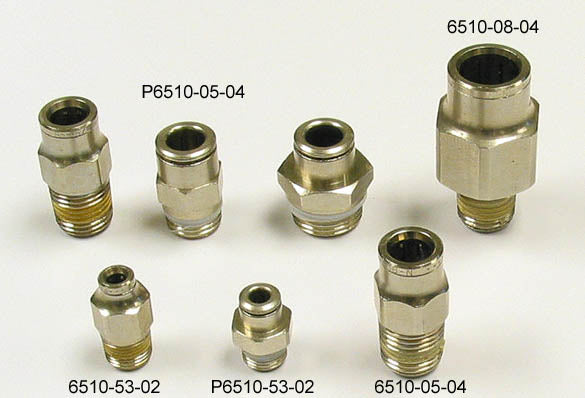

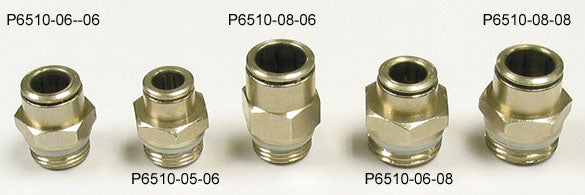

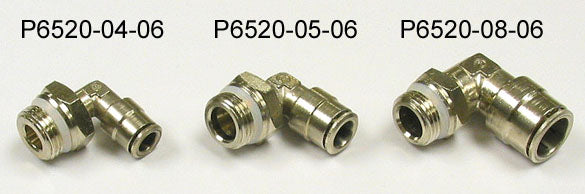

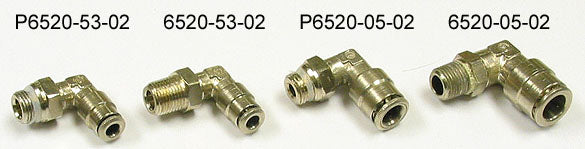

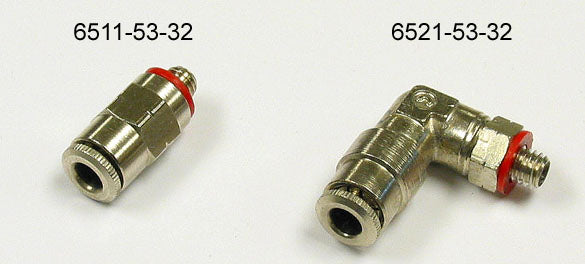

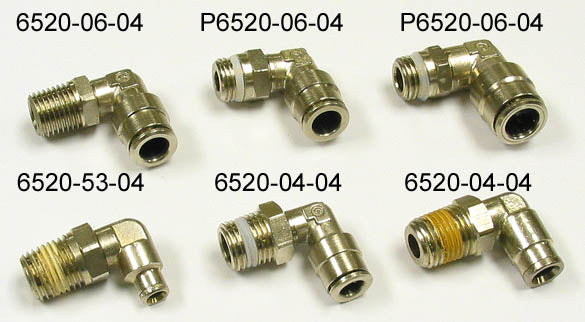

Actual pictures of fittings.
Part number starting with "P" have an integrated sealing ring.
     Part #            Tube OD          Thread        Available      Price Ea.

P6520-08-06  1/2"       3/8" UNF     11      $4.00
P6520-05-06  5/16"(8mm) 3/8" UNF     15
      $3.50
P6520-04-06  1/4"       3/8" UNF      1      $3.50
P6520-06-04  3/8"       1/4" UNF      3      $3.00
P6520-05-04  5/16"(8mm) 1/4" UNF      8      $3.00
 6520-05-04  5/16"(8mm) 1/4" UNF     15      $3.00
 6520-04-04  1/4"       1/4" UNF     25      $2.75
P6520-04-04  6mm        1/4" UNF      4      $2.75
 6520-53-04  5/32"(4mm) 1/4" UNF     22      $2.50
 6520-04-02  1/4"       1/8" UNF      0      $2.00
P6520-04-02  1/4"       1/8" UNF      5      $2.00
 6520-05-02  5/16"(8mm) 1/8" UNF      1      $2.00
 6520-53-02  5/32"(4mm) 1/8" UNF      4      $2.00
P6520-53-02  5/32"(4mm) 1/8" UNF      5      $2.00
 6521-53-32  5/32"(4mm) 10-32        34      $2.00

The following male connectors are available:
P6510-08-08  1/2"       1/2" UNF      2      $2.00
P6510-06-08  3/8"       1/2" UNF      1      $2.00
P6510-08-06  1/2"       3/8" UNF      2      $2.00
P6510-06-06  3/8"       3/8" UNF      1      $1.75
P6510-05-06  5/16"(8mm) 3/8" UNF      8      $1.75
 6510-08-04  1/2"       1/4" UNF      2      $1.75
 6510-05-04  5/16"(8mm) 1/4" UNF      2      $1.50
P6510-05-04  5/16"(8mm) 1/4" UNF      4      $1.50
P6510-04-04  1/4"       1/4" UNF      0      $1.25
P6510-05-04  5/16"(8mm) 1/4" UNF      1      $1.25
P6510-53-04  5/32"(4mm) 1/4" UNF      1      $1.25
P6510-53-02  5/32"(4mm) 1/8" UNF      3      $1.25
 6510-53-02  5/32"(4mm) 1/8" UNF      3      $1.25
 6511-05-32  5/32"(4mm) 10-32         6      $1.25
