Allen Bradley 800T-J4KC7 Series D Heavy Duty 3 Position Switch

Standard Heavy Duty 600 Volt , 3 position switch.
Two positions are maintained and one is spring return.
The switch has two 800T-XA contact blocks with 1 NO and 1 NC contact
Left position maintained: contact 1-closed, contact 2-open, contact 3-open, contact 4-open
Center position maintained: contact 1-open, contact 2-closed, contact 3-open, contact 4-open
Left position spring return: contact 1-open, contact 2-open, contact 3-closed, contact 4-closed
It features a zinc die cast construction with aluminum mounting nut for a 30.5mm mounting hole.
This switch is used - has been tested - with 30 day Warranty

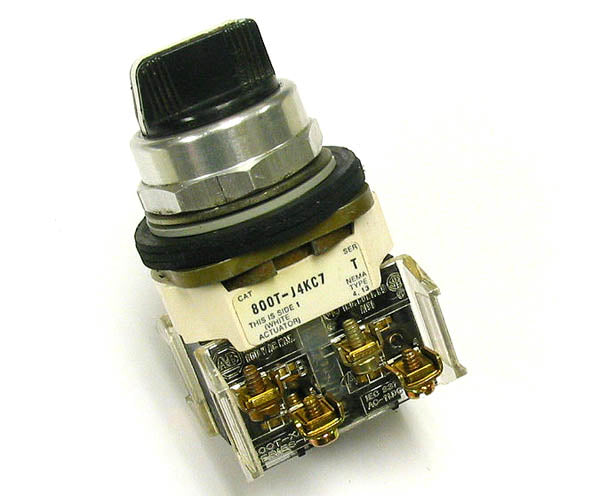

Actual picture of switch.
Price $28.00 each (1 available)
