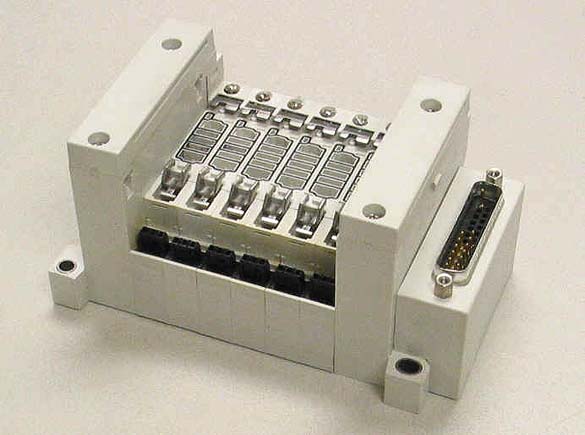

SMC VV5Q11-__C8___ Series VQ1000 Manifold Base

VQ valves are ideal for applications requiring high speed,
frequent operation, stable response time and long service life.
Innovative mounting methods allow valves to be changed
without entirely disassembling the manifold.
Built-in one-touch fittings save piping time and labor.
These SMC manifolds are prewired to a 25 pin D-sub connector with common (-).
P ports and R ports are 8mm (5/16") diameter one touch fittings
External pilots are 4mm (5/32") diameter one touch fittings.
DIN Rail mount Manifolds with the following number of stations are available:

                                          Quan   $ Ea.
5 Station Top D-sub VV5Q11-05C8FU0-_D__S    1   $40.00
6 Station Top D-sub VV5Q11-06C8FU0-____S    1   $45.00
6 Station Top D-sub VV5Q11-06C8FU0-RS       3   $45.00
7 Station Top D-sub VV5Q11-07C8FU0-_D__S    1   $53.00
8 Station Top D-sub VV5Q11-08C8FU0-_D__S    1   $59.00
10 Station Top D-subVV5Q11-10C8FU0-___RS    2   $68.00
11 Station Top D-sub VV5Q11-11C8FU0-_D__S   1   $78.00
11 Station Top D-sub  VV5Q11-11C8FU0-_D_RS  1   $78.00
12 Station Side D-sub VV5Q11-12C8FS0-_D__S  1   $85.00

For availability of VQ1000 Series Valves call.
For availability of One-touch fittings call.
For availability of D-sub Connector Cable Assemblies call.
These manifolds are used - fully tested - in like New condition.

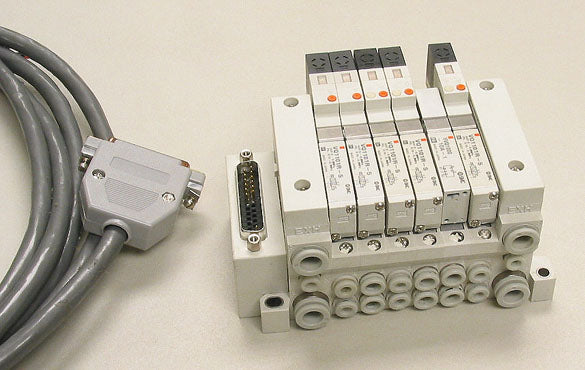

Note: Picture #2 is for illustration only.
