MAC 92 Series (10) Air Valves Circuit Bar WATTS QUBE FRL System SV105-04, B105-04WGCR-M1, SC105-04M-M1, 92A-AAB-000-DM-DFFP-4DN

This COMPLETE ten valve manifold system, mounted on a T-slotted
aluminum frame, ready to mount onto a project or use as a standalone unit.
It includes the following items:
- (1) Watts SV105-04 manual shut off valve with exhaust and 1/2" NPT supply.
- (1) Watts B105-04WGCR-M1 Pressure Regulators with coalescing filter
and moisture trap that removes oil and water aerosols with auto drain.
- (1) Watts SC105-04M-M1 24 VDC solenoid Soft Start shutoff valves
with quick exhaust, manual over-ride and LED indicator.
- (1) PDA Adjustable Pressure switch 25/110 for alarm or control.
- (1) MAC ten station Circuit Bar fully populated with ten MAC 92 Series valves.
- (10) MAC 92A-AAB-000-DM-DFFP-4DN fast response single operator
2-position 4-way valves, 1.2 Cv, DM-DFFP-4DN 24VDC, 2.4 Watt solenoids,
with red LED indicator light and locking extended manual operator.
- (10 FC92A-AA flow control manifolds
All mounted to 29.5" x 11.5" x 1.5" T-slotted Aluminum frame.
This unit is completely prewired ready to use.
Comes complete with mufflers and brass quick disconnect fittings.
This system is used - Has been fully tested - Is in excellent condition.

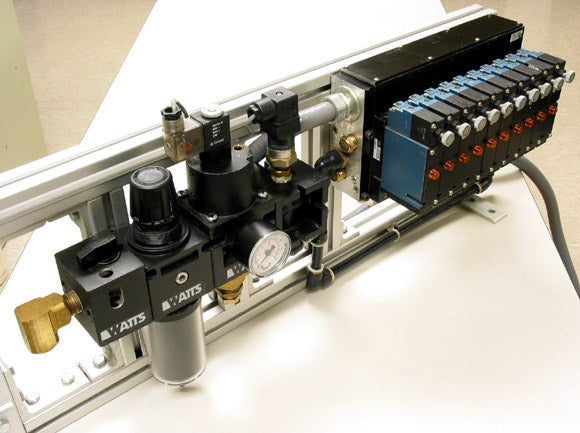

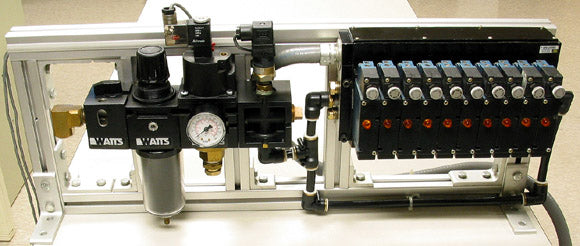

Actual picture of item. - With 60 day Warranty.
Price $490.00
